507349 Mediekonverter Fast Ethernet, Gigabit Ethernet - 507349

Name: 507349 Mediekonverter Fast Ethernet, Gigabit Ethernet (507349)
Brand: 507349 Mediekonverter Fast Ethernet, Gigabit Ethernet
SKU: 507349
Price: 916.13 NOK
Availability: InStock

1 Gbps - Ethernet - RJ-45 - 10Base-T, 1000Base-LX, 100Base-TX, 1000Base-T - RJ-45 / SC enkeltmodus - opptil 20 km - 1310 nm (507349)

NOK 916.13 Ekskl. MVA

NOK 1,145.16 Inkl. MVA

Tilstand : New

Lagerstatus:

(22) In Stock

Garanti : Lære mer

Kjøp nå, betal senere

03 måneders plan

Du skal betale NOK 325.23 (Excluding VAT) per måned.

06 måneders plan

Du skal betale NOK 172.84 (Excluding VAT) per måned.

12 måneders plan

Du skal betale NOK 95.35 (Excluding VAT) per måned.

Betalning og fraktmetoder:

Har du spørsmål? Klikk her for å chatte med vår forhåndssalgskonsulent og gjøre det riktige kjøpet.

MERK: Informasjonen nedenfor er kun gitt for din bekvemmelighet, nøyaktigheten av spesifikasjonene kan ikke garanteres. Men om nødvendig, vennligst bekreft med oss før du kjøper. Data levert av 1 World Sync

General

Maximum data transfer rate

1000 Mbit/s

Converter input interface

1000Base-T

Converter output interface

1000Base-LX

Fiber optic connector

Connectivity technology

Wired

Maximum transfer distance

20000 m

Wavelength

1310 nm

Fiber mode structure

Single-mode

Product colour

Black

Housing material

Metal

Certification

FCC Class B, CE

Output voltage

5 V

Output current

1.2 A

Power consumption (max)

5 W

Lenke for nedlasting

Intellinet Gigabit Ethernet Single Mode Media Converter, 10/100/1000Base-T til 1000Base-Lx (SC) Single-Mode, 20 km (Euro 2-pinners plugg). Maksimal dataoverføringshastighet: 1000 Mbit/s, Omformerinngangsgrensesnitt: 1000Base-T, Omformerutgangsgrensesnitt: 1000Base-LX. Fiberoptisk kontakt: SC, Tilkoblingsteknologi: Kablet. Maksimal overføringsavstand: 20000 m, Bølgelengde: 1310 nm, Fibermodusstruktur: Enkeltmodus. Produktfarge: Svart, Husmateriale: Metall, Sertifisering: FCC klasse B, CE. Utgangsspenning: 5 V, Utgangsstrøm: 1,2 A, Strømforbruk (maks): 5 W

https://intellinetnetwork.eu/catalogsearch/result/?q=507349

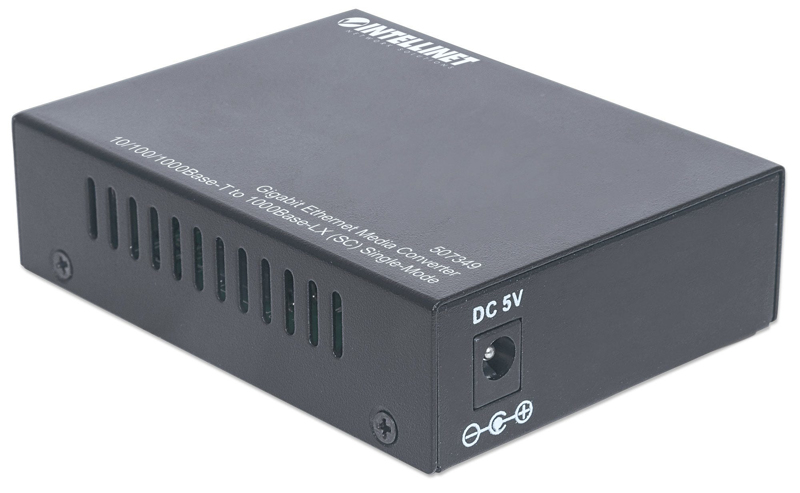

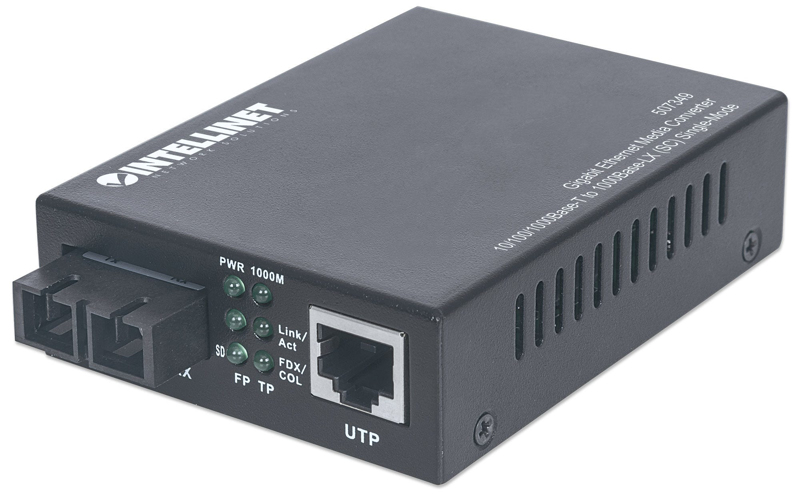

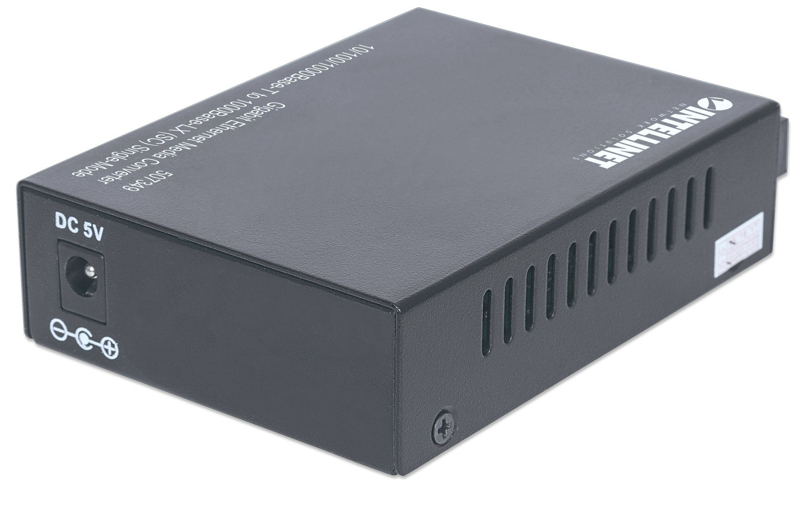

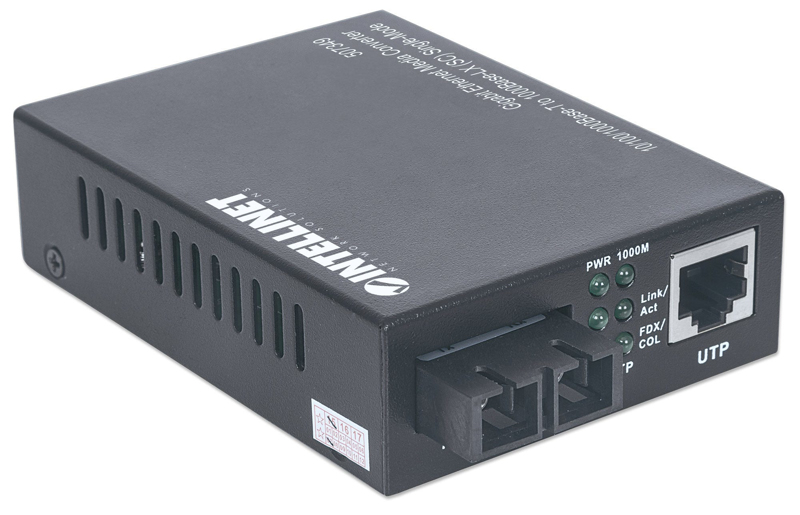

The Intellinet Network Solutions Gigabit Ethernet Single Mode Media Converter was specifically designed to offer the network designer a device for migration from copper-based Ethernet to Fibre Ethernet. Now migration or expansion of existing networks can be achieved with minimum cost and complexity. _x000D_
_x000D_
Expands the Size of an Existing Network _x000D_
Provides fibre connectivity to Ethernet segments, allowing for even further networking expansion between extended workgroups. Also provides building-to-building connectivity without the need for the cost and disruption associated with the installation of additional routers. _x000D_
_x000D_
Enhances the Distance between Networking Devices _x000D_
Connecting the converter to fibre segments can further extend distances between networking nodes. This can be achieved by direct connection between the converter and a fibre-based node or networking device. _x000D_
_x000D_
Cabling Flexibility _x000D_
Network managers can install fibre cabling anywhere within a network without changing the arrangement of copper-based Ethernet. The compact size of the converter allows it to be easily deployed in any narrow desktop location, and up to 14 media converters can be simultaneously installed into a 19"; rack-mountable chassis (model 507356).

Fibre SC single-mode port connects over distances of up to 20 km (12.4 miles)
Three-Year Warranty
Data transfer rate: 10/100/1000 Mbps
10/100/1000 Mbps auto-sensing Gigabit Ethernet RJ45 port with Auto MDI/MDI-X support
RJ45 port with Auto MDI/MDI-X support and auto-negotiation
1000Base-LX single-mode Fibre SC duplex port
Wavelength: 1310 nm
Status LEDs for power and Link/TX for both ports
External power adapter, 5 VDC
Functions as a stand-alone converter or can be used with the 14-slot media converter chassis, model 507356
